使用与简绍：/Purpose and introduction

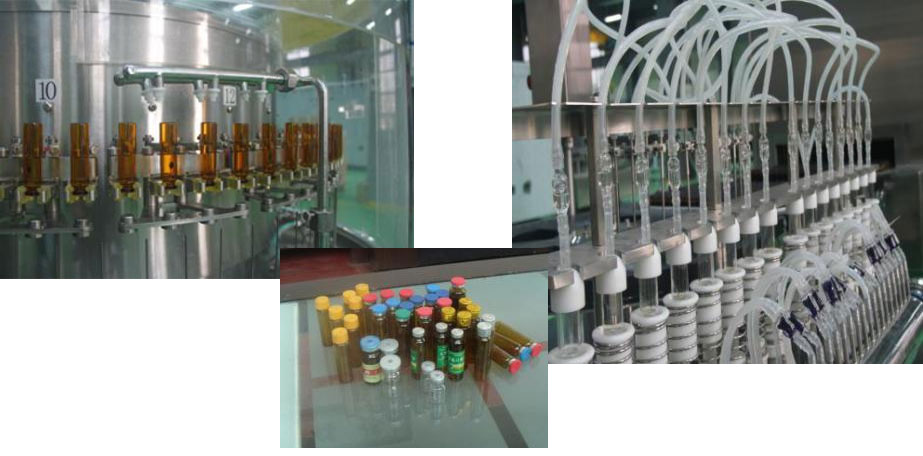

服用液洗烘灌轧协作线由双面mri检查波洗瓶机、隧道工程式暖风 巡环高压蒸汽灭菌处理烘烤箱、服用液分装生产制造制造线轧盖机等构成，比较适合于 5-30ml 等不同的规 格服用液瓶的生产制造制造。可成功完成对医疗耗材生产制造制造中安瓿瓶淋水、mri检查波洗掉、冲水、充 气、烘干设备高压蒸汽灭菌处理、降温、分装生产制造制造线、轧盖等加工过程方法流程的协作工作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

共同点:/characteristic

◆洗瓶机进行机手夹瓶，采用很多尺寸的小瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶使用气水喷针往复运动监测嵌入玩法，洗掉的效果更好，厉行低碳环保系统。并有针架防颤抖装制，提升喷针嵌入瓶盖的合理度，抑制断针迹象发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整一个雾气输送管、喷针全自立分割，预防了交叉重合生态破坏，符合标准GMP标准规范的标准；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前加裝加载块，有保养丝杠，可以减少碎瓶帮助Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶进行建筑体国外同步软件带，相连接拨块输送管补血口服液液，程序运行不稳定性信得过In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱适用红外线预铜管，不锈钢管预铜管单层预热的温度竖直性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机自选配瓷质泵、不锈钢材料泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装设备无瓶止灌，无瓶不轧盖功能性。Pieces filling without bottle filling, no bottle no rolling function.◆整线应用PLC总掌控、变頻器、展示屏展示屏屏掌控手段，运作稳定的安全可信度。展示屏展示屏屏可展示各手机单机的运作模式，各掌控点的水管打压、大气压、风压差、溫度等展示，各电源开关模式和出现问题的展示，出现问题的自我价值观鉴别诊断和出现问题的剖析及排查手段。使所有生育方式到达电脑自动化技术掌控，联线更具三机自我控制均衡化性试验装置，担保生育均衡化安全可信度。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.跟据用户的须要，还可供选择装配：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、三菱PLC、台达等知名品牌操纵系统性；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压力差、温度及超声心动图波強度、浮尘再生颗粒、流速在线平台检则、报警功能、记下、彩印平台。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测隔离开器体统。Mixer ORABS, CRABS, aseptic isolator system.

工艺技术指标：technical parameters

使用样式Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌可靠性强，精密度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖及格率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
