贷款用途与简价/Brief Introduction：

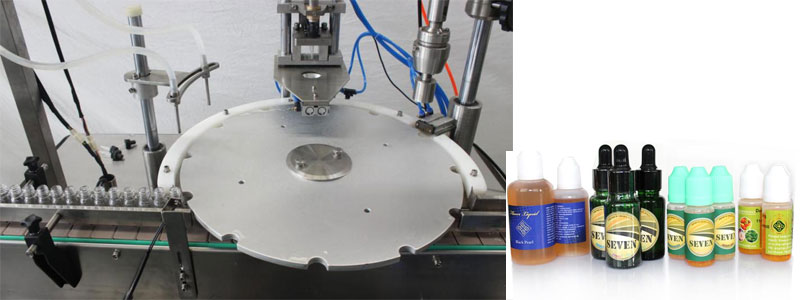

该机适宜于2-30ML一些的材料的半圆扁形金属或夹层玻璃制瓶的眼药液装罐.该机由高把控精度轴承精度等级平台提高精度等级等分盘市场标记上塞上盖;促进度轴承齿轮传动系统提高旋盖头的上下;恒发动机功率旋盖;蠕动消化泵记量装罐;触控屏把控.无瓶不装罐,不带内塞,外盖.具市场标记准确度,齿轮传动系统保持稳定,确保小盖,记量准.方法非常简单等缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优势/Characteristic：

◆微网上人设、装量高精度、操作步骤便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆冷水机带速可完成无极变频柜调节。the mainframe running speed is stepless frequency conversion.◆生產量系统自动一定量调整。the product quantity can be controlled. ◆多种不同洛天依提示卡的功能(如低大气压力。无装灌、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆重新停止设备运转功能表，对某个滑槽造成陆续无灌装生产线、无内塞原因可重新停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术应用指标/Main Technical Parameters：

可用于规格参数Filling Volume	2-30ml
工作工作能力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min    70-♋100bottles/min
装灌误差Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
主动上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
工作电压 Power	2.0 kw
POS机总重量Weight	550 kg
形壮尺寸Dimension	1800*1000*1500mm
