适用范围与简单/Brief Introduction：

该设备是抗衡服用液夹层玻璃纸罐的新產品，徹底解決了常有服用液夹层玻璃纸罐的较差效用。这类灌封机运用的朔料瓶，不光不须得洗瓶机、烘干箱机，更不须得消毒液，能否会直接灌封。此机全自功理瓶、进瓶、装罐设备线，装罐设备线量安全，无漏滴，无瓶不装罐设备线。上盖、封口处率电动车续航100%。此机技术性高端，体型大小小、启用安全、躁声低，实操保修、清理便于等基本特征，齐全不符合GMP的标准。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本技术参数有低转速和髙速俩种时产供您决定。Note: this model has two kinds of low speed and high-speed production for your choice.

亮点 Characteristic

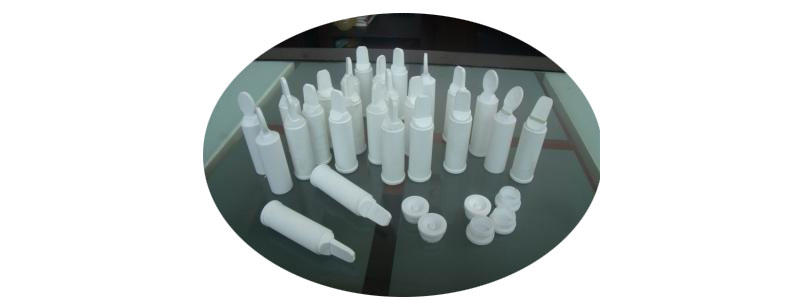

◆该机不适用在各类易折瓶服用液剂量灌装生产线和封好。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆全部的电器电线电缆pcb板均利用有名店牌。All electrical components adopt famous brand◆该机进行抽象思维简单方便，无瓶不灌装生产线，记量*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折可可乐瓶灌封机的注意节构与工作原理Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型原浆、油类液易折塑胶片瓶灌封机首要理瓶器、理盖器、主传动装制系统的、云同步带油隙送小瓶置、空罐检漏装制、灌装线机购、消除装制、熔接封机购、气动弹簧机械设备制造脚趾头夹瓶机购、伺服线束交流接触器油隙上瓶机购与出瓶机购等构成的。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆机械运用的口服药液易折氟瓶子、盖都是定无尘室区研发的，是指药粉材同意证，故此瓶身与底盖经表达和"去委外"后可会开启灌封间。借助理盖器、理瓶器的电脑自动方向收集，去掉方向底盖及瓶身底口朝下的瓶，使方向后的包材喂料有技巧地开启推送轮轨中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向委培后服用液易折金属瓶在输料轮轨后排Directional oral liquid after folding plastic bottles in conveying rail out easily

水平指标technical parameters：

型号model	NLGFY-40	NLGFY-80
装量面积The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封口处率Hot sealing intensity	》99%
装量不确定度The load error	《1.5%
脏污率damage rate	《1.0%
电功率power	2KW	3KW
交流电源Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
单重 Weight	700Kg	800Kg
