种类与介绍/Brief Introduction：

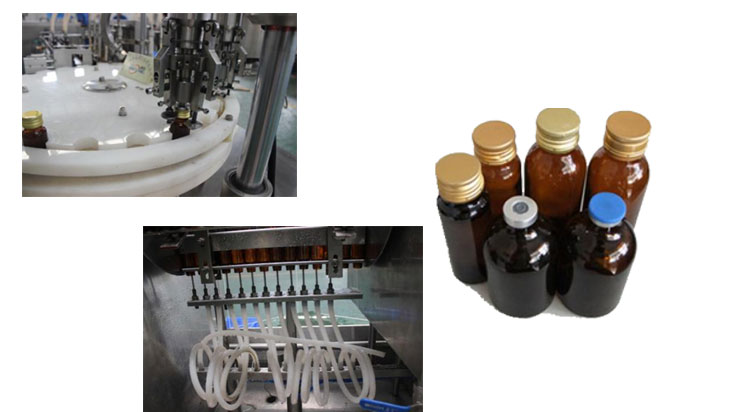

本产量线最适合30ML以上的口服方式液的罐装线线产量，由供瓶机、滚轴洗瓶机、线路式罐装线线轧（旋）盖机、开式标贴签机等系统组合成，可全一键实现理瓶、洗瓶、罐装线线、上盖、旋（轧）盖、标贴签等工艺程序。主要使用化工机械、食物、化工机械的的不同液状体物料清单的罐装线线对接产量。本产量线完完全全不符合GMP必须。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

优势 /Characteristic：

◆看起来质材为304冷库保温隔热板的表层装饰管，分装部分组采316L冷库保温隔热板的表层装饰管，适合GMP制约。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可融入多规格为产出。can be situable for several bottle specs.◆工作增强，噪音分贝小，分装透彻 。Stable running,low noise,precise filling.◆破瓶率低，半成品合格达标率高，高能耗少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆一条出产线可电脑单机操控和连锁加盟店操控。The whole line can single machine control or interlock control.

技术应用参数表/Main Technical Parameters：

适合尺寸规格Filling Volume	30-150ML
包装头数Productivity	中速4头         &n💯bsp;    髙速8头 4 at low speed         ⛎    high speed 8
生育效率	低挡30-50瓶/分     飞速70-100瓶/分 30-50bottles/min  70-100bottles/min
装罐误差Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
电Power Supply	220V/50Hz
工作电压Power Supply	2.5kw
生產线总长Dimension	7500*1000*1700MM
